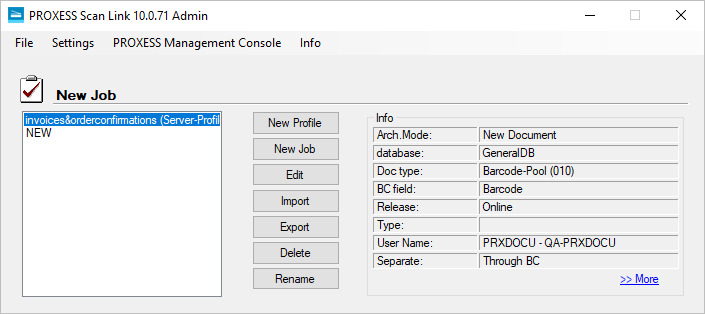

“New job” window area

Profiles

Already created scan profiles are listed under Profiles. When the PROXESS Scan Client is started for the first time, this list is empty and all buttons are deactivated except for New profile and Import.

If you have selected an existing profile, the other buttons will also become active. Detailed information about the highlighted profile is shown on the right.

New profile

With this button you define a new scan profile. Configured scan profiles will only apply to the currently logged-in user. With the “Advanced properties” tab, you can make the profile accessible to all users.

You can learn more about creating a new scan profile in the chapter “Create new profile”.

New job

You can open a new scan job with the New job button. The scanning interface of PROXESS Scan Client will open. First you must have selected a profile on the left. Now you can scan documents or import and edit TIFF files.

(Alternative access by double-clicking scan profile)

Edit

You can change existing scan profiles with the Edit button.

Import

You can import individual scan profiles in the format of an XML file with the Import button.

This makes sense particularly when different PROXESS scan stations should use the same settings. The prerequisite for importing a scan profile via XML file is that an active scan profile was exported first.

Export

You can also make a created scan profile available to other workstations with the Export button. The profile will be stored as an XML file and can now be imported by other workstations (see above).

Clear

You can delete existing scan profiles with the Clear button.

Rename

You can rename existing scan profiles with the Rename button.

Info

The Info box lists the most important parameters of a scan profile.

>> More

All settings of a scan profile are listed here in the form of a clear directory structure.
